主要特性和優勢
- 單電源GPIO擴展器，支持1.65 V至5.5 V工作電源電壓范圍
- 通過I²C協議可實現串行到并行（SDA至P0-P16）和并行到串行(P0-P16)轉換
- 在SCL和SDA輸入處，施密特觸發器動作可實現較慢的輸入轉換并提供更好的開關噪聲抗擾度。
- 低功耗：2.5 µA（最大值）
- 工作頻率：400 kHz（FM I²C模式）
- 5 V容差I(lǐng)/O和16個I/O引腳，默認為16路輸入
- 無毛刺上電，所有通道均配置為弱上拉電阻輸入
- 鎖存輸出，具有25 mA最大驅動能力，可直接驅動LED
- 極性反轉寄存器
- 外部復位引腳用于復位狀態機和內部寄存器
- SCL和SDA輸入提供噪聲濾波器

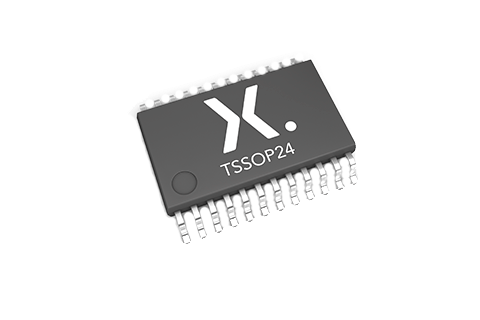

- 封裝選項：TSSOP24和HWQFN24
- 額定溫度范圍為-40 °C至+85 °C和-40 °C至+125 °C
關鍵應用
- 服務器和路由器
- 電視和硬件控制監控器
- 游戲機和無人機
- 電池供電應用
- 汽車應用（ADAS、VCU、DCU和BCM）
- 監控?cái)z像頭
- 電信設備

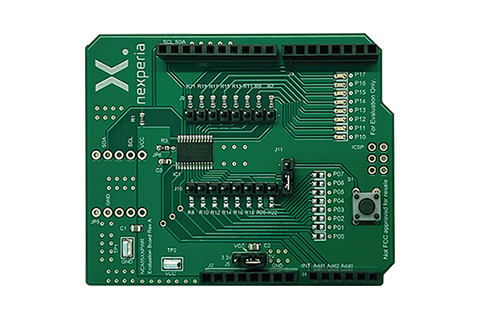

Evaluation boards
參數搜索
I2C General-Purpose I/O (GPIO)
數據加載中，請稍候...參數搜索不可用。
產品
| 型號 | 描述 | 狀態 | 快速訪問 |
|---|---|---|---|
| NCA9535 | Low-voltage 16-bit I2C and SMBus low-power I/O expander with interrupt output and configuration registers | ACT |
|
| NCA9535BY | Low-voltage 16-bit I2C and SMBus low-power I/O expander with interrupt output and configuration registers | Production | |
| NCA9535BY-Q100 | Low-voltage 16-bit I2C and SMBus low-power I/O expander with interrupt output and configuration registers | Production | |
| NCA9535PW | Low-voltage 16-bit I2C and SMBus low-power I/O expander with interrupt output and configuration registers | Production | |
| NCA9535PW-Q100 | Low-voltage 16-bit I2C and SMBus low-power I/O expander with interrupt output and configuration registers | Production | |
| NCA9535-Q100 | Low-voltage 16-bit I2C and SMBus low-power I/O expander with interrupt output and configuration registers | ACT |
|
| NCA9535BY-Q100 | Low-voltage 16-bit I2C and SMBus low-power I/O expander with interrupt output and configuration registers | Production | |
| NCA9535PW-Q100 | Low-voltage 16-bit I2C and SMBus low-power I/O expander with interrupt output and configuration registers | Production | |
| NCA9539PW-Q100 | Low-voltage 16-bit I2C and SMBus low-power I/O expander with interrupt output, reset pin and configuration registers | ACT |
|
| NCA9539BY-Q100 | Low-voltage 16-bit I2C and SMBus low-power I/O expander with interrupt output, reset pin and configuration registers | Production | |
| NCA9539PW-Q100 | Low-voltage 16-bit I2C and SMBus low-power I/O expander with interrupt output, reset pin and configuration registers | Production | |
| NCA9555-Q100 | Low-voltage 16-bit I2C and SMBus I/O expander with interrupt output and configuration registers | ACT |
|
| NCA9555BY-Q100 | Low-voltage 16-bit I2C and SMBus I/O expander with interrupt output and configuration registers | Production | |
| NCA9555PW-Q100 | Low-voltage 16-bit I2C and SMBus I/O expander with interrupt output and configuration registers | Production | |
| NCA6416BY | Low-voltage translating 16-bit I2C-bus/SMBus I/O expander | Production | |
| NCA6416BY-Q100 | Low-voltage translating 16-bit I2C-bus/SMBus I/O expander | Production | |
| NCA6416PW | Low-voltage translating 16-bit I2C-bus/SMBus I/O expander | Production | |
| NCA6416PW-Q100 | Low-voltage translating 16-bit I2C-bus/SMBus I/O expander | Production | |
| NCA9539BY | Low-voltage 16-bit I2C and SMBus low-power I/O expander with interrupt output, reset pin and configuration registers | Production | |
| NCA9539PW | Low-voltage 16-bit I2C and SMBus low-power I/O expander with interrupt output, reset pin and configuration registers | Production | |
| NCA9555BY | Low-voltage 16-bit I2C and SMBus I/O expander with interrupt output and configuration registers | Production | |
| NCA9555PW | Low-voltage 16-bit I2C and SMBus I/O expander with interrupt output and configuration registers | Production | |
| NCA9595PW | Low-voltage 16-bit I2C and SMBus I/O expander with interrupt output, configuration registers and programmable pull-up resistors | Production | |
| NCA9595PW-Q100 | Low-voltage 16-bit I2C and SMBus I/O expander with interrupt output, configuration registers and programmable pull-up resistors | Production | |
| PCA9535PW | Low-voltage 16-bit I2C and SMBus low-power I/O expander with interrupt output and configuration registers | Production | |
| PCA9539PW | Low-voltage 16-bit I2C and SMBus low-power I/O expander with interrupt output, reset pin and configuration registers | Production | |
| PCA9555PW | Low-voltage 16-bit I2C-bus I/O port with interrupt and weak pull-up | Production |
Visit our documentation center for all documentation
Leaflet (1) |
|||
|---|---|---|---|
| 文件名稱 | 標題 | 類型 | 日期 |
| Leaflet_SOT8065_Minilogic.pdf | Leaflet_SOT8065 Minilogic | Leaflet | 2024-11-15 |
Outline 3d (1) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |
| sot355-1_3d.png | plastic, thin shrink small outline package; 24 leads; 0.65 mm pitch; 7.8 mm x 4.4 mm x 1.1 mm body | Outline 3d | 2021-06-10 |
Software (2) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |
| NCA95XX_EVB_Software.zip | NCA95XX EVB GUI | Software | 2023-03-12 |
| NCA95XX_Arduino_Sketches.zip | NCA95XX Arduino? Sketch Examples | Software | 2023-03-12 |
User manual (2) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |
| UM90016.pdf | NCA95xx GPIO expander EVB (Arduino? shield compatible) | User manual | 2024-02-23 |
| UM90017.pdf | NCA95XX Evaluation Board: Quick-Start Guide | User manual | 2023-01-18 |
