Power protection

Maximize safe operation and minimize downtime

Today’s electronic systems require a mix of power path protections including inrush current and output overload, reverse current and reverse polarity, short circuit, and overvoltage and over temperature. Nexperia provides a range of power path protection solutions, engineered for exceptional robustness and reliability while maintaining industry-standard compatibility with added efficiency and innovation.

針對物聯網、可穿戴設備、消費電子、汽車和工業應用領域電源需求持續增長的趨勢，Nexperia一直致力于提供電源IC，助力實現創新、高效的解決方案，尤其是幫助客戶降低BOM成本并提高系統性能。為此，我們面向物聯網和消費電子應用推出電池管理和能源采集解決方案，這也是我們在該領域推出的第一個產品系列。

Evaluation boards

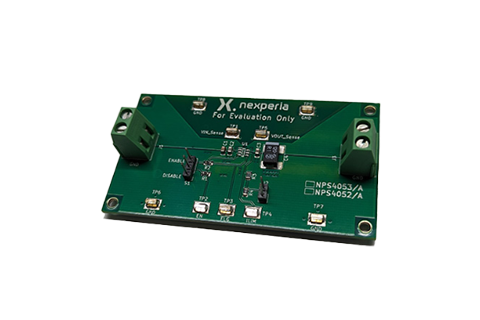

Load switch evaluation board (NPS4053)

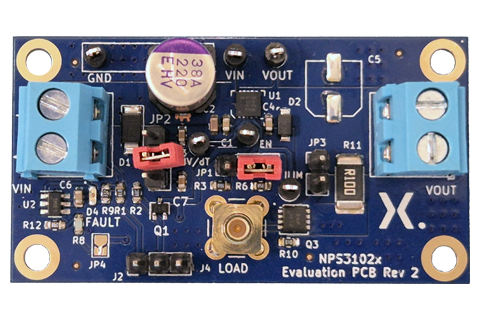

12 V, 2-13.5 A, 17 m? latching eFuse evaluation board (NPS3102A)

Input Polarity Protected, Low IQ Ideal Diode evaluation board (NID5100)

Featured documents

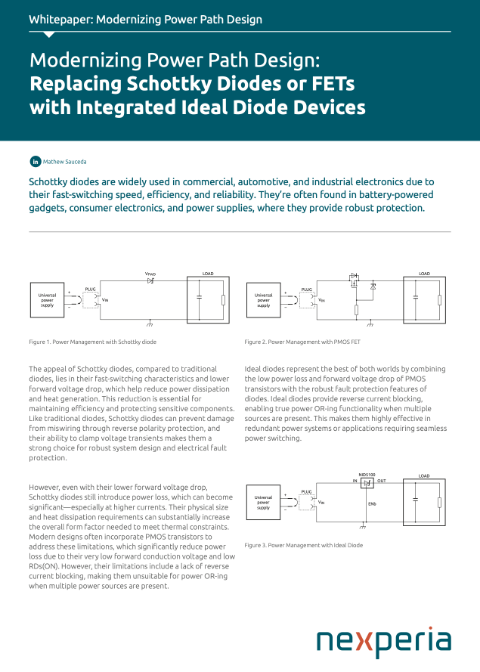

New Whitepaper: Modernizing Power Path Design

Replacing Schottky Diodes or FETs with Integrated Ideal Diode Devices

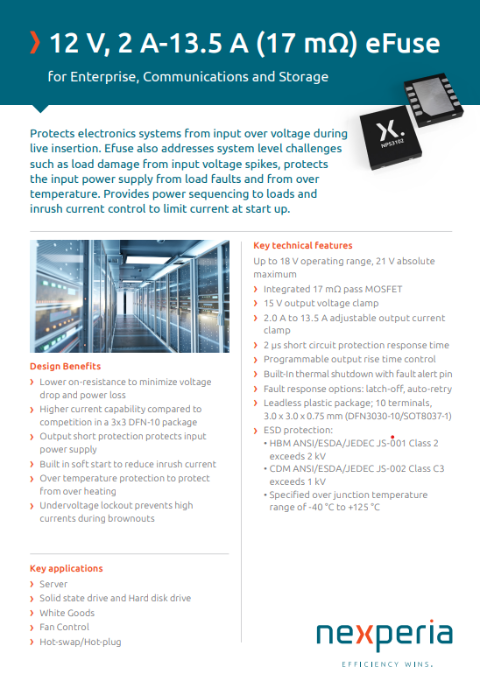

NPS3102x – eFuse leaflet

12 V, 2 A-13.5 A (17 mΩ) eFuse

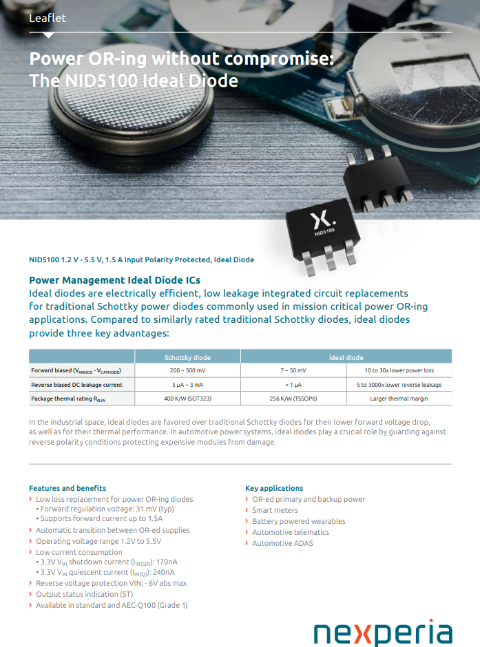

NID5100 – ideal diodes leaflet

NID5100 1.2 V - 5.5 V, 1.5 A Input Polarity Protected

產品

型號	描述	狀態	快速訪問

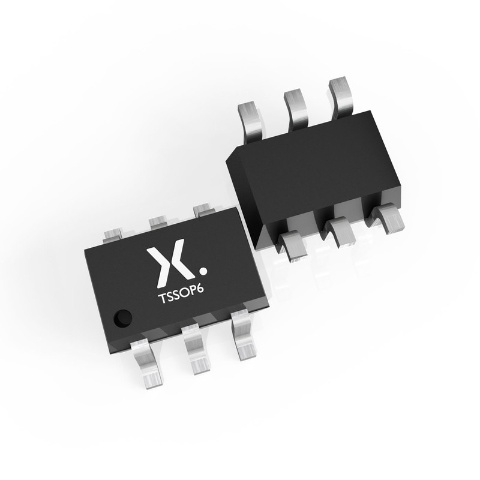

NID5100	1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode	ACT
NID5100GW	1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode	Production	在線購買樣品
NID5100GW-Q100	1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode	Production	在線購買樣品
NID5100-Q100	1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode	ACT
NID5100GW-Q100	1.2 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode	Production	在線購買樣品
NPS1000	0.5 V to 1.0 V, 1.5 A peak, 11 mΩ, load switch	ACT
NPS1000UP	0.5 V to 1.0 V, 1.5 A peak, 11 mΩ, load switch	Production	在線購買樣品
NPS1001	0.5 V to 1.8 V, 1.5 A peak, 12 mΩ, load switch	ACT
NPS1001UP	0.5 V to 1.8 V, 1.5 A peak, 12 mΩ, load switch	Production	在線購買樣品

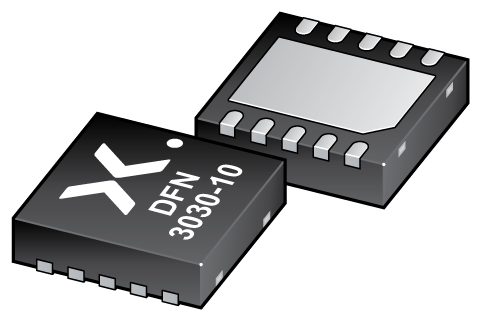

NPS3102	12 V, 2 A to 13.5 A, 17 mΩ eFuse	ACT
NPS3102AGB	12 V, 2 A to 13.5 A, 17 mΩ eFuse	Production	在線購買樣品
NPS3102BGB	12 V, 2 A to 13.5 A, 17 mΩ eFuse	Production	在線購買樣品
NPS4001	5.5 V, 55 mOhm load switch with current limitation	ACT
NPS4001GV	5.5 V, 55 mOhm load switch with current limitation	Production	在線購買樣品
NPS4053	5.5 V, 55 mOhm load switch with precision adjustable current limit	ACT
NPS4053GH	5.5 V, 55 mOhm load switch with precision adjustable current limit	Production	在線購買樣品
NPS4053GH-Q100	5.5 V, 55 mOhm load switch with precision adjustable current limit	Production	在線購買樣品
NPS4053GV	5.5 V, 55 mOhm load switch with precision adjustable current limit	Production	在線購買樣品
NPS4053GV-Q100	5.5 V, 55 mOhm load switch with precision adjustable current limit	Production	在線購買樣品
NPS4053-Q100	5.5 V, 55 mOhm load switch with precision adjustable current limit	ACT
NPS4053GH-Q100	5.5 V, 55 mOhm load switch with precision adjustable current limit	Production	在線購買樣品
NPS4053GV-Q100	5.5 V, 55 mOhm load switch with precision adjustable current limit	Production	在線購買樣品
NPS4069	5.5 V, 55 mOhm load switch with current limitation	ACT
NPS4069GV	5.5 V, 55 mOhm load switch with current limitation	Production	在線購買樣品
NID1100GV	1.5 V to 5.5 V, 1.5 A, compact ideal diode with forward voltage blocking	Production	樣品在線購買
NID1101UP	1.5 V to 5.5 V, 1.5 A, compact ideal diode with forward voltage blocking	Qualification	樣品在線購買
NPS3005GP	0.5 V to 5.5 V, 6 A, 15 mOhm, single channel load switch with soft start	Production	樣品在線購買
NPS3005GP-Q100	0.5 V to 5.5 V, 6 A, 15 mOhm, single channel load switch with soft start	Production	樣品在線購買

Visit our documentation center for all documentation

Leaflet (3)
文件名稱	標題	類型	日期
nexperia_load_switch_family_2025.pdf	NPS4053, NPS1001, NPS4069, NPS4001 Load Switch leaflet	Leaflet	2025-08-08
nexperia_leaflet_efuse.pdf	12 V, 2 A-13.5 A (17 mΩ) eFuse for Enterprise, Communications and Storage	Leaflet	2025-01-21
nexperia_leaflet_ideal-diode.pdf	NID5100 Ideal Diode	Leaflet	2024-08-09
Outline 3d (1)
文件名稱	標題	類型	日期

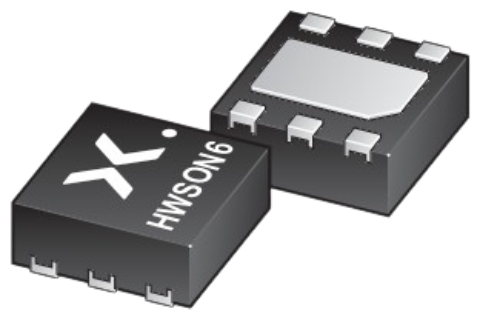

sot8044-1_3d.png	HWSON6; SOT8044-1; Plastic thermal enhanced very very thin Small Outline packages, no leads; 6 terminals; 0.65 mm pitch; 2.0 mm x 2.0 mm x 0.75 mm body	Outline 3d	2025-04-10

如果您有支持方面的疑問，請告知我們。如需獲得設計支持，請告知我們并填寫技術支持表格，我們會盡快回復您。

請訪問我們的社區論壇或聯系我們。
